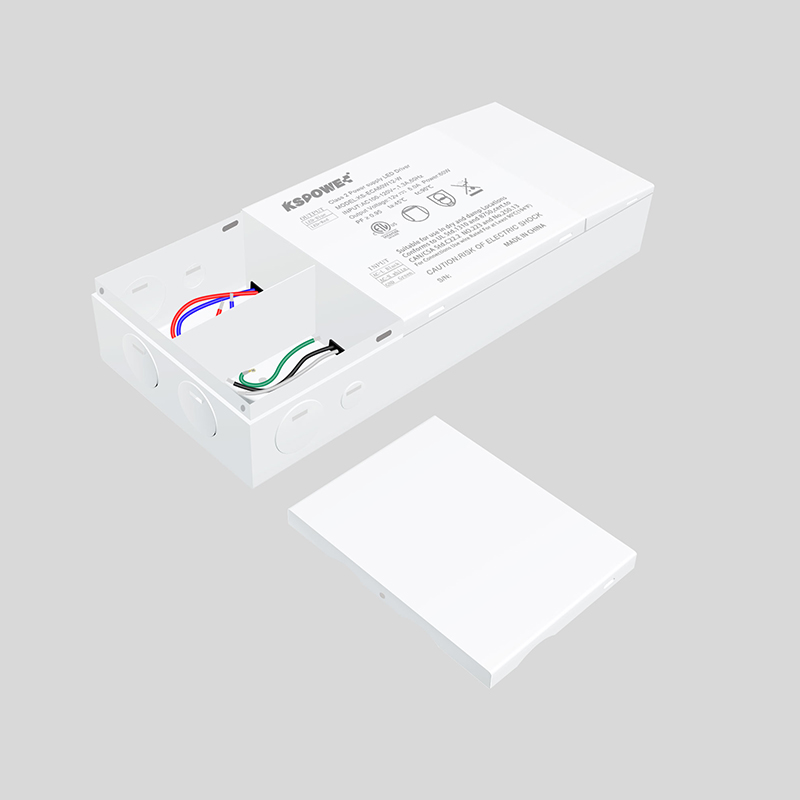

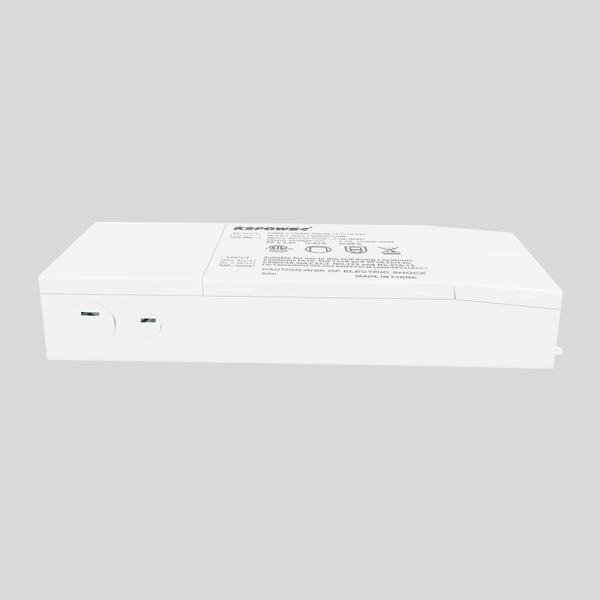

Backlight 96w Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply

Name: Backlight 96w Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply
Brand: KSPOWER
Price: 27 USD

Quality Backlight 96w Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply for sale

Place of Origin : China (Mainland)

Brand Name : KSPOWER

Model Number : KSE-80W24 / KSE-96W24

MOQ : 10 pieces

Price : $27/pieces 10-499 pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 80W/96W

Output Type : Single Phase

Input Voltage : 100V-120Vac & 200-240Vac

Output Frequency : 50/60Hz

Output Current : 3.33A / 4.0A

product name : continuous smooth led transformer 24v80w dc led driver

Output Voltage : 24V

efficiency : >90%

Protections : OCP, OVP, SCP, OTP

warranty : 3 years

certification : ETL cETL CE ROHS UL Class2

dimension : 200*85*37mm (L*W*H)

material : iron case

color : Silver, Black, White, Blue, Gray or custom.

Dimming mode : Traic /Phase-Cut Dimmable

Contact Now

Backlight 96w Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply

Products Description

Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input
* 12V/ 24V PWM Output
* Single Channel & Constant Voltage mode
* Enclosure With Junction Box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Specification:

Model No.	Output Power	Output Voltage	Output Current	Efficiency	Dimension
KSE-24W	20W	12V/24V	1.7A/0.84A	≥88%	(7.93.341.45)inch 2008537MM
KSE-40W	40W	12V/24V	3.34A/1.67A	≥88%
KSE-60W	60W	12V/24V	5A/2.5A	≥88%
KSE-80W	80W	24V	3.33A	≥88%
KSE-96W	96W	24V	4.0A	≥88%

NOW,GET MORE INFORMATIONS OF US !

Company Profile

Working Room

Exhibition

Certifications

Applications

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.

3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
